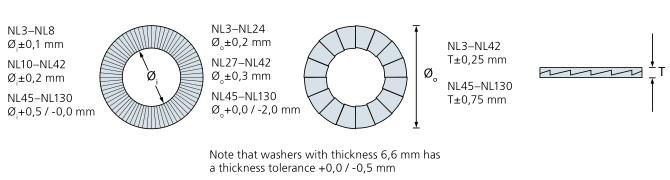

| 墊圈大小 | 螺栓尺寸 | øi(mm) | ø0(mm) | 厚度 T(mm) | 最少包裝(對) | 參考重量kg/100對 | |
| 度量 | UNC | ||||||
| NL3 | M3 | #5 | 3.4 | 7 | 1.8 | 200 | 0.03 |
| NL3.5 | M3.5 | #6 | 3.9 | 7.6 | 1.8 | 200 | 0.04 |
| NL3.5sp | M3.5 | #6 | 3.9 | 9 | 1.8 | 200 | 0.06 |
| NL4 | M4 | #8 | 4.4 | 7.6 | 1.8 | 200 | 0.04 |
| NL4sp | M4 | #8 | 4.4 | 9 | 1.8 | 200 | 0.06 |
| NL5 | M5 | #10 | 5.4 | 9 | 1.8 | 200 | 0.05 |
| NL5sp | M5 | #10 | 5.4 | 10.8 | 1.8 | 200 | 0.11 |
| NL6 | M6 | 6.5 | 10.8 | 1.8 | 200 | 0.07 | |
| NL6sp | M6 | 6.5 | 13.5 | 2.5 | 200 | 0.2 | |
| NL1/4" | 1/4” | 7.2 | 11.5 | 1.8 | 200 | 0.08 | |
| NL1/4"sp | 1/4” | 7.2 | 13.5 | 2.5 | 200 | 0.18 | |
| NL8 | M8 | 5/16” | 8.7 | 13.5 | 2.5 | 200 | 0.15 |
| NL8sp | M8 | 5/16” | 8.7 | 16.6 | 2.5 | 200 | 0.28 |
| NL3/8" | 3/8” | 10.3 | 16.6 | 2.5 | 200 | 0.23 | |
| NL3/8"sp | 3/8” | 10.3 | 21 | 2.5 | 200 | 0.48 | |
| NL10 | M10 | 10.7 | 16.6 | 2.5 | 200 | 0.22 | |
| NL10sp | M10 | 10.7 | 21 | 2.5 | 200 | 0.47 | |
| NL11 | M11 | 7/16” | 11.4 | 18.5 | 2.5 | 200 | 0.29 |
| NL12 | M12 | 13 | 19.5 | 2.5 | 200 | 0.29 | |
| NL12sp | M12 | 13 | 25.4 | 3.4 | 100 | 0.93 | |
| NL1/2" | 1/2” | 13.5 | 19.5 | 2.5 | 200 | 0.27 | |
| NL1/2sp" | 1/2” | 13.5 | 25.4 | 3.4 | 100 | 0.9 | |
| NL14 | M14 | 9/16” | 15.2 | 23 | 3.4 | 100 | 0.56 |
| NL14sp | M14 | 9/16” | 15.2 | 30.7 | 3.4 | 100 | 1.41 |
| NL16 | M16 | 5/8” | 17 | 25.4 | 3.4 | 100 | 0.67 |
| NL15sp | M16 | 5/8” | 17 | 30.7 | 3.4 | 100 | 1.28 |
| NL18 | M18 | 19.5 | 29 | 3.4 | 100 | 0.85 | |
| NL18sp | M18 | 19.5 | 34.5 | 3.4 | 100 | 1.58 | |
| NL3/4" | 3/4” | 20 | 30.7 | 3.4 | 100 | 1.05 | |
| NL3/4"sp | 3/4” | 20 | 39 | 3.4 | 100 | 2.2 | |
| NL20 | M20 | 21.4 | 30.7 | 3.4 | 100 | 0.93 | |
| NL2Osp | M20 | 21.4 | 39 | 3.4 | 100 | 2.03 | |
| NL22 | M22 | 7/8” | 23.4 | 34.5 | 3.4 | 100 | 1.29 |
| NL22sp | M22 | 7/8” | 23.4 | 42 | 4.6 | 50 | 3.31 |
| NL24 | M24 | 25.3 | 39 | 3.4 | 100 | 1.68 | |
| NL24sp | M24 | 25.3 | 48.5 | 4.6 | 50 | 4.51 | |
| NL1" | 1” | 27.9 | 39 | 3.4 | 100 | 1.53 | |
| NL1"sp | 1” | 27.9 | 48.5 | 4.6 | 50 | 4.2 | |
| NL27 | M27 | 28.4 | 42 | 5.8 | 50 | 3.29 | |
| NL27sp | M27 | 28.4 | 48.5 | 5.8 | 25 | 5.39 | |
| NL30 | M30 | 1 1/8” | 31.4 | 47 | 5.8 | 50 | 4.2 |
| NL30sp | M30 | 1 1/8” | 31.4 | 58.5 | 6.6 | 25 | 8.96 |
| NL33 | M33 | 1 1/4” | 34.4 | 48.5 | 5.8 | 25 | 3.97 |
| ML33sp | M33 | 1 1/4” | 34.4 | 58.5 | 6.6 | 25 | 8.31 |
| NL36 | M36 | 1 3/8” | 37.4 | 55 | 6.6 | 25 | 5.59 |
| NL36sp | M36 | 1 3/8” | 37.4 | 63 | 6.6 | 25 | 9.15 |
| NL39 | M39 | 1 1/2” | 40.4 | 58.5 | 6.6 | 25 | 6.28 |
| NL42 | M42 | 43.2 | 63 | 6.6 | 25 | 7.47 | |
| NL45 | M45 | 1 3/4” | 46.2 | 70 | 7 | 25 | 10.2 |
| NL48 | M48 | 49.6 | 75 | 7 | 25 | 12 | |
| NL52 | M52 | 2” | 53.6 | 80 | 7 | 25 | 13 |
| NL56 | M56 | 2 1/4” | 59.1 | 85 | 7 | 10 | 13.5 |
| NL60 | M60 | 63.1 | 90 | 7 | 10 | 15.2 | |
| NL64 | M64 | 2 1/2” | 67.1 | 95 | 7 | 10 | 15.2 |
| NL68 | M68 | 71.1 | 100 | 9.5 | 1 | 28.19 | |
| NL72 | M72 | 75.1 | 105 | 9.5 | 1 | 30.7 | |
| NL76 | M76 | 3” | 79.1 | 110 | 9.5 | 1 | 33.31 |
| NL80 | M80 | 83.1 | 115 | 9.5 | 1 | 36.02 | |
| NL85 | M85 | 88.1 | 120 | 9.5 | 1 | 37.84 | |
| NL90 | M90 | 92.4 | 130 | 9.5 | 1 | 47.67 | |
| NL95 | M95 | 97.4 | 135 | 9.5 | 1 | 49.81 | |
| NL100 | M100 | 4” | 103.4 | 145 | 9.5 | 1 | 58.91 |
| NL105 | M105 | 108.4 | 150 | 9.5 | 1 | 61.28 | |
| NL110 | M110 | 113.4 | 155 | 9.5 | 1 | 63.65 | |
| NL115 | M115 | 118.4 | 165 | 9.5 | 1 | 75.28 | |
| NL120 | M120 | 123.4 | 170 | 9.5 | 1 | 77.94 | |
| NL125 | M125 | 128.4 | 173 | 9.5 | 1 | 76.63 | |
| NL130 | M130 | 5” | 133.4 | 178 | 9.5 | 1 | 79.17 |
