產品介紹：
自1937推出以來，Cherry MS 鉚釘一直是行業的可靠標準。雖然1960的取代新鎖錠規格nas1400和nas1740，Cherry MS 鉚釘仍廣泛用于制造、維修和滿足mil-r-7885 II型的資格要求。Cherry MS 鉚釘是用鋸齒柄制造的。較早的旋鈕柄結構被認為是過時的。Cherry 盲安裝工具可以僅僅通過改變拉頭來安裝這些鉚釘。

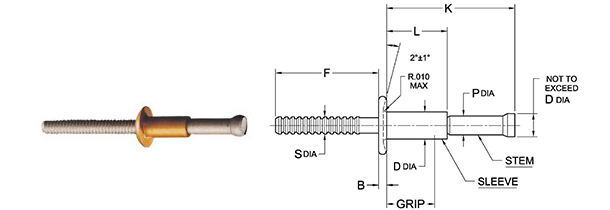

尺寸規格：
| 編號 | A | B±.005 | D | F±.003 | P | S |
| -4 | .360‐.390 | 0.025 | 0.125 | 0.75 | .100 | .0875 |
| -5 | .449‐.489 | 0.031 | 0.156 | .125 | .1095 | |
| -6 | .537‐.587 | 0.035 | 0.187 | .145 | .1280 | |
| -8 | .719‐.781 | 0.050 | 0.250 | 1.000 | .189 | .1715 |
| 編號 | GRIP 范圍 | ‐4 直徑 | ‐5 直徑 | ‐6 直徑 | ‐8 直徑 | |||||
| 最小 | 最大 | L | K | L | K | L | K | L | K | |
| -1 | .030 | .077 | .130 | .319 | .130 | .350 | .130 | .382 | / | / |
| -2 | .078 | .140 | .193 | .445 | .193 | .476 | .193 | .494 | .255 | .600 |
| -3 | .141 | .203 | .255 | .569 | .255 | .601 | .255 | .619 | .318 | .726 |
| -4 | .204 | .265 | .318 | .695 | .318 | .726 | .318 | .744 | .380 | .815 |
| -5 | .266 | .328 | .380 | .819 | .380 | .851 | .380 | .869 | .442 | .975 |
| -6 | .329 | .390 | .442 | .944 | .442 | .975 | .442 | .993 | .505 | 1.101 |
| -7 | .391 | .453 | .505 | 1.069 | .505 | 1.101 | .505 | 1.119 | .567 | 1.225 |
| -8 | .454 | .515 | .567 | 1.194 | / | / | .567 | 1.243 | .630 | 1.351 |
| -9 | .516 | .578 | .630 | 1.319 | / | / | .630 | 1.369 | .693 | 1.476 |
| -10 | .579 | .640 | .693 | 1.445 | / | / | .693 | 1.494 | .755 | 1.601 |
| -11 | .641 | .703 | / | / | / | / | .755 | 1.619 | .818 | 1.726 |
| -12 | .704 | .765 | / | / | / | / | / | / | .880 | 1.851 |
| -13 | .766 | .828 | / | / | / | / | / | / | .942 | 1.975 |
| -14 | .829 | .892 | / | / | / | / | / | / | 1.005 | 2.101 |
